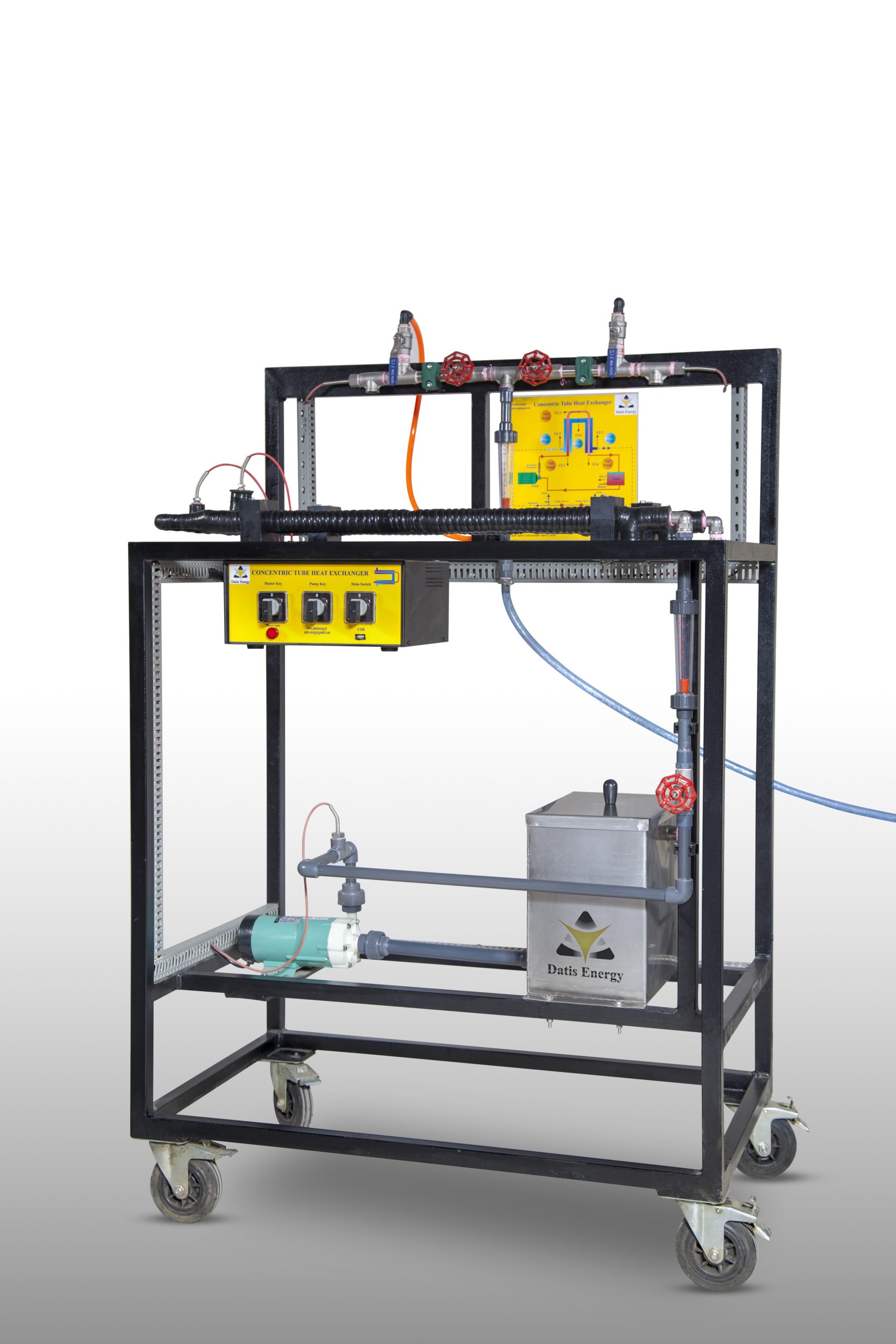

Double pipe heat exchanger (concentric)

The purpose of this experiment is to calculate the amount of transferred heat, the logarithmic temperature and the overall heat transfer coefficient, the comparison of parallel flow and non-symmetric flow in a heat exchanger.
The process of heat exchange between two fluids of different temperatures separated by a solid wall occurs in many engineering applications. The device used for this exchange is called a heat exchanger.
The hot water unit includes a tank and an electric heater with a power of 2.5 kW that heats the water to the desired temperature. A thermostat is used to control the temperature of the incoming hot water. The inlet hot water temperature can be adjusted by the display screen. The tank must be filled with distilled water to prevent sedimentation of the pipes.

Category Heat transfer laboratory

Description

Description

• 4 cold water taps to create parallel flow and non-aligned flow
• 2 hot water inlet and outlet valves.
• 2 rotameters to adjust the flow of hot and cold water
• Hardware and software with the ability to calibrate sensors, control the heating system, and transfer data to Excel software
• Has teaching power point and student’s agenda, calculation book and software training video
• The structure of the device has an electrostatic color
• Stainless steel pump for hot water circulation
• Electric heater with 2.5kw power
• 6 pieces of PT100 type temperature sensors from Jomo, Germany
• EMKO or Sunward displays to show the temperature in different places if the digital display system is used
• Both tube and shell are made of copper
