Porosity measurement device using helium gas

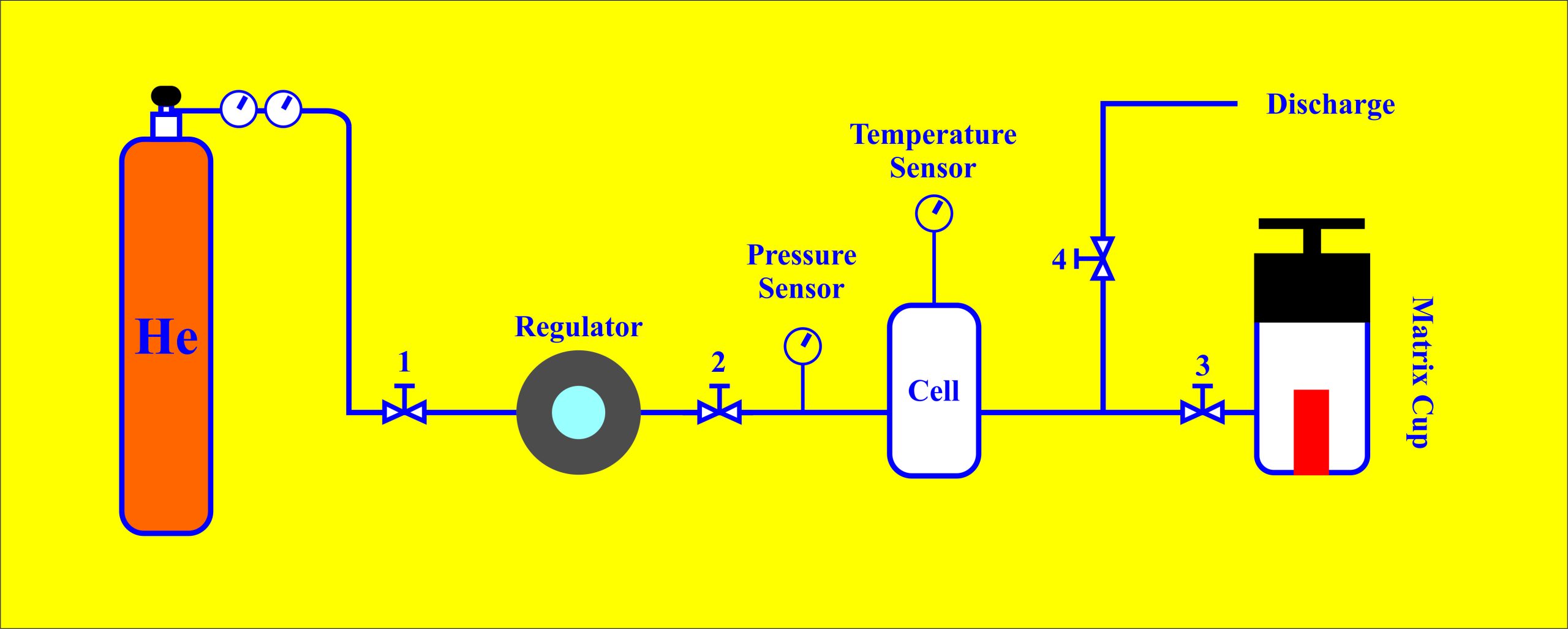

This device measures the porosity of the core and the density of the stone grains simply by using helium gas injection. The software connected to the device provides the possibility of simple calibration of the device. This device, along with standard calibration cylinders, is fully automatic with high speed and the ability to print the results, capable of measuring porosity in the range between 0.1% and 50% with accuracy. It is 0.01 percent.

Description

• Determining the porosity (empty space) of reservoir rock and other similar environments
• Measurement of porosity up to 60%
• Special compartment for sample storage
• Includes a console that has a digital pressure indicator.
• Temperature sensor
• Computer and accessories
• Pressure up to 200 psi
• Ambient temperature
• Used for all kinds of stones
• Helium gas
• 0.1% accuracy
• Special container for sample storage
• Sample diameter 1-1.5 in
• Sample length up to 3 in
