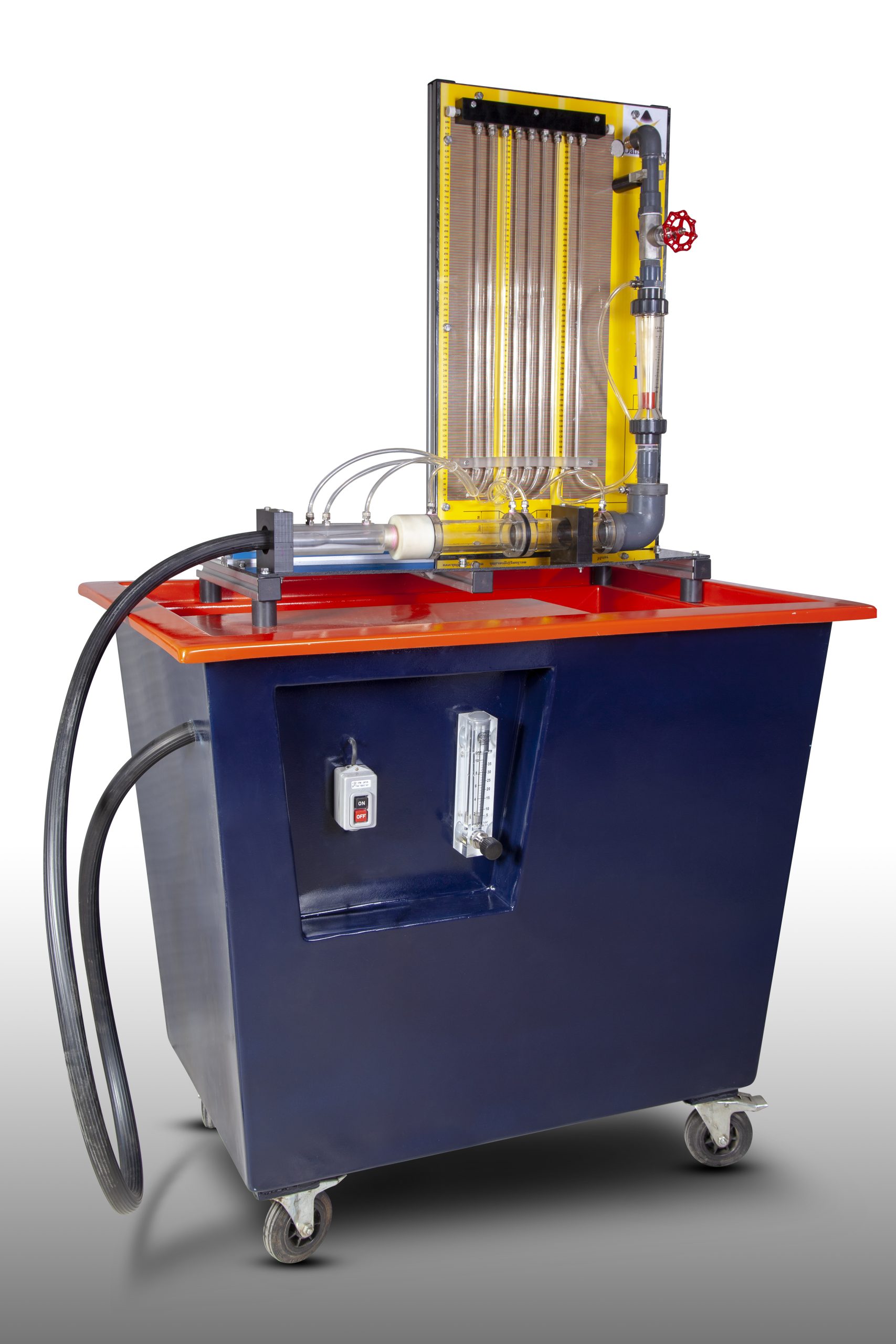

Flow measuring device

By means of this device, flow measurement is done by venturi, orifice and rotameter and these methods are compared with each other.
Also, the discharge coefficient and the energy loss coefficient for the flowmeters, diffuser and elbow installed in the device are calculated and compared.
The working method of this device is according to Bernoulli’s equation, which can be used to obtain relationships between different sections of the venturi tube, orifice or rotameter to determine the flow rate, the principles of which are based on measuring the pressure drop between those sections.

Description

• Orifice made of brass or stainless steel
• Venturi made of clear plexiglass
• Sudden expansion system
• Rotameter 40-400 Lit/h
• Kneeling and bending
• Graded and waterproof plot
• Suitable ventilation valve
• A total of 9 manometers are installed before and after each equipment
• The structure of the device is made of Plexiglas
• Ability to install on the hydraulic table
