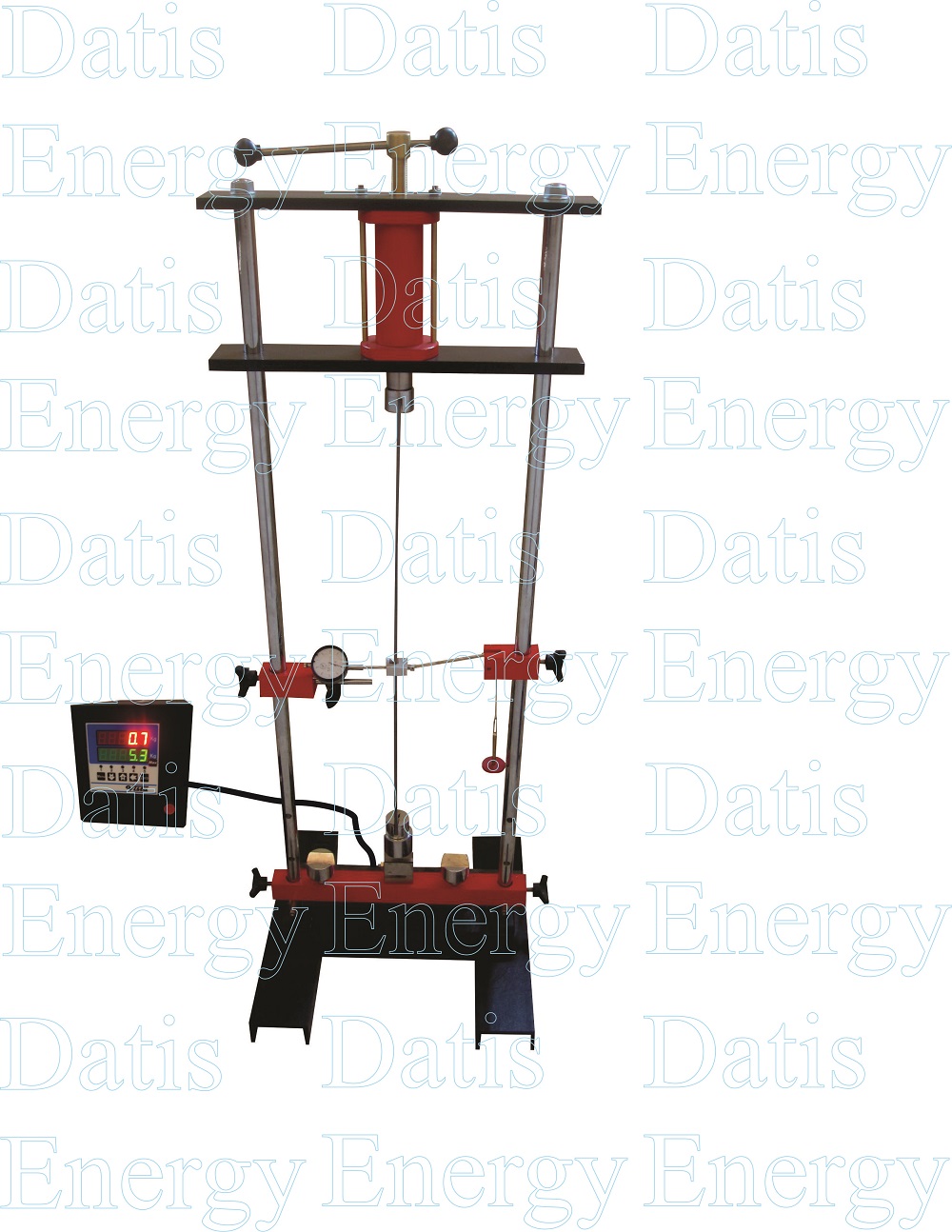

Buckling test machine

The purpose of using this device is to calculate the lateral buckling in the columns and obtain the critical load for different columns with different support conditions.
The choice of columns is usually an important part of the design of a structure because the failure of a column usually results in catastrophic results, and the design of columns is more difficult than the design of beams under bending or shafts under twisting. Because their behavior is more complicated. If the length of the column is large compared to its cross-sectional area, it may fail due to buckling, i.e. due to bending and lateral displacement, rather than yielding due to the presence of normal stress.
By using various samples and supports, various tests can be performed with this device.

Category Strength of Materials Laboratory

Description

Description

• The ability to change the length of the test sample
• Manual force application system with the ability to change force
• Examples of beams made of brass, steel and steel
• Standard jaws for holding the sample
• Force measurement system using Load cell
• Measuring the amount of beam arch using a mechanical gauge with an accuracy of 0.01mm
• The ability to perform tests in different support modes (one-headed support, two-headed support and joint
• Applying force in the direction perpendicular to the rod by the jack
• Applying lateral force by gravity loading
• Hardware and software with the ability to calibrate sensors and transfer data to Excel software
• Has teaching power point and student agenda, calculation notebook and software training video
• The structure of the device has electrostatic paint
